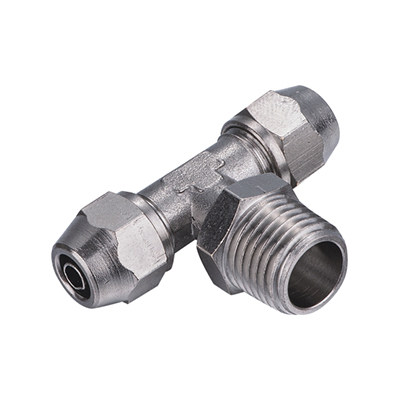

• Model：Locknut Male BSPT Thread (R Thread) Tee Type 3 Way

• Product Type & Structure：SM Series Locknut Tube Fittings

• Material：Plastic、Brass、Nitrile rubber (NBR)

• Surface Treatment：Pickling、Electroplating

• internal pipe size:4、6、8、10、12

• Outer diameter of the pipe:2.5、4、5、6、6.5、、8、9、10

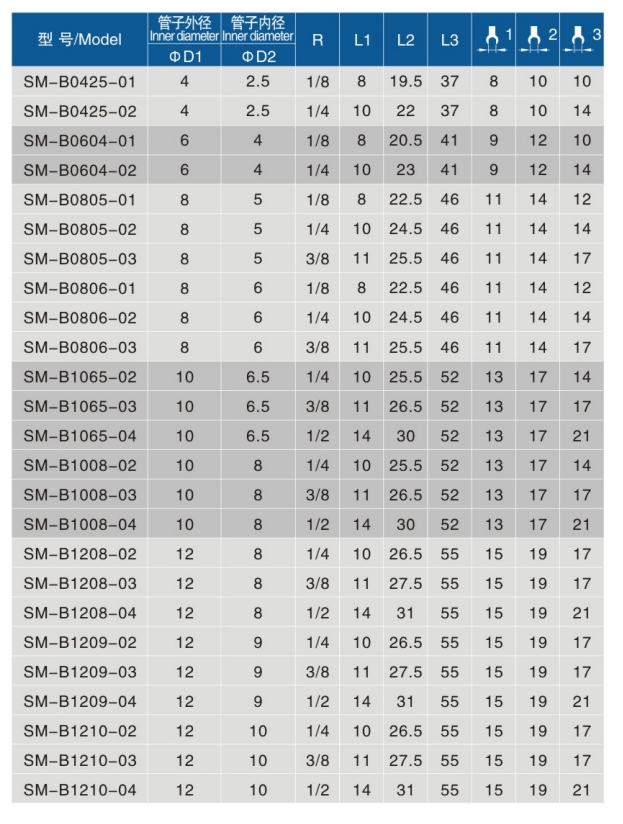

• thread specification：1/8、1/4、3/8、1/2

* Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.*

• Working Pressure：0~1.0 MPa

• Operating Temperature：-10°C to +60°C

• Vacuum Pressure Rating： -100 Kpa (10 Torr)

• Fluid：Air、Water（Conditional）

• Application：Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.
