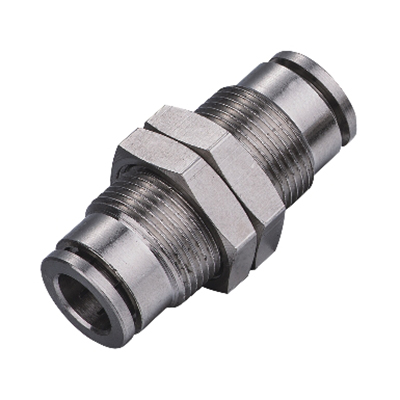

NPMT All Brass Bulkhead Straight BSPT Thread(R Thread)
• Model：All Brass Bulkhead Straight BSPT Thread(R Thread)
• Product Type & Structure：All Brass QuickConnectTube Fittings
• Material：Plastic、Brass、Nitrile rubber (NBR)
• Surface Treatment：Pickling、Electroplating

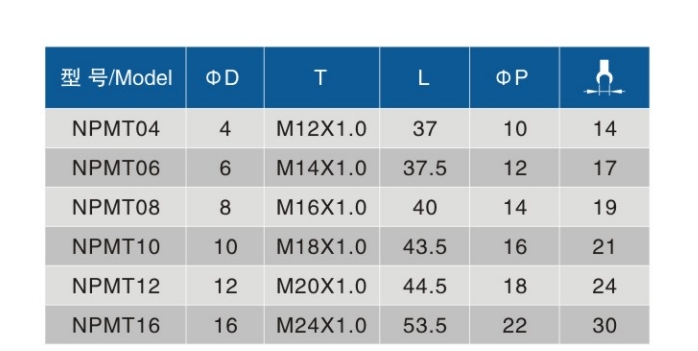

• Thread Specifications：M12X1.0、M14X1.0、M16X1.0、M18X1.0、M20X1.0、M24X1.0
• pipe orifice：4、6、8、10、12、16
* Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.*
• Working Pressure：0~1.0 MPa
• Operating Temperature：-10°C to +60°C
• Vacuum Pressure Rating： -100 Kpa (10 Torr)
• Fluid：Air、Water（Conditional）
• Application：Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.
• Phone/WhatsApp：+86 13777151201
• E-mail：ptce@ptce.net
All the main and auxiliary components are pneumatic tube fittings made of brass.
The pneumatic tube fittinos are of excellent flame resistance, heat resistance, and splash resistance·When inserting or unplugging a tube, press the button down to easily insert and unplug without damaging to tubeAfter installation of the straight, three-way, four-way, and other terminal connectors, simply rotate the fittings bodyto adjust thedirection of the tube.
