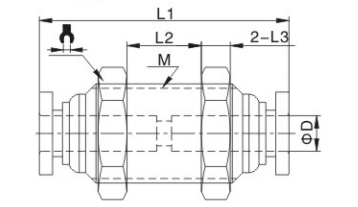

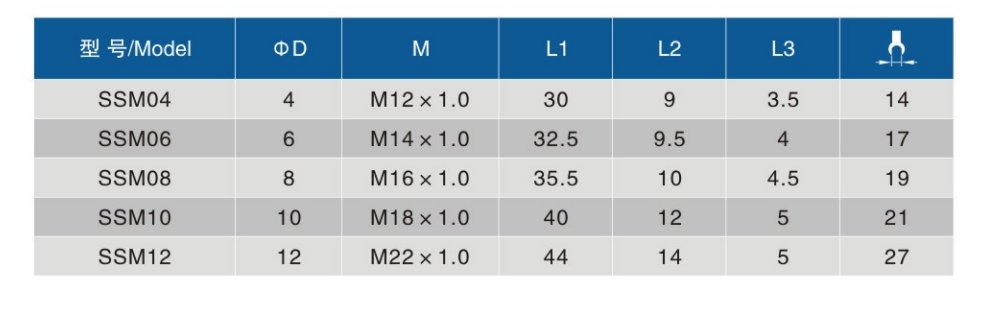

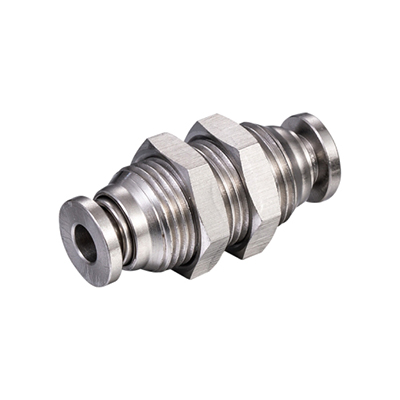

SSM Bulkhead Straight Union
• Model：Bulkhead Straight Union
• Product Type & Structure：All stainless steel series connectors
• Material：stainless steel、Nitrile rubber (NBR)
• Surface Treatment：Magnetic grinding
• Thread Specifications：04、06、08、10、12
• Button Sizes：4、6、8、10、12
* Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.*
• Working Pressure：0~1.0 MPa
• Operating Temperature：-10°C to +60°C
• Vacuum Pressure Rating： -100 Kpa (10 Torr)
• Fluid：Air、Water（Conditional）
• Application：Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.
• Phone/WhatsApp：+86 13777151201
• E-mail：ptce@ptce.net
The materials ensure Anti-Corrasion highly,all of them aremade from SUS316L except the seal ring.FKM is used as the seal ring,which can ensure anti-corrosionand acid resistant and extended life time.The accessories are oil-free and reach the Food HygieneLaw of People's Republic of china,which are applied widelyin the range of industry such as food service industry,chemicalindustry and medical industry.
