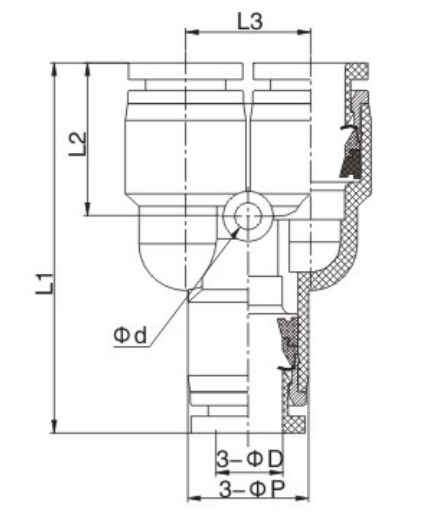

• Model：Y Type Straight Union

• Product Type & Structure：Stainless steel plastic fittings

• Material：stainless steel、plastic

• Surface Treatment：sonicleaning

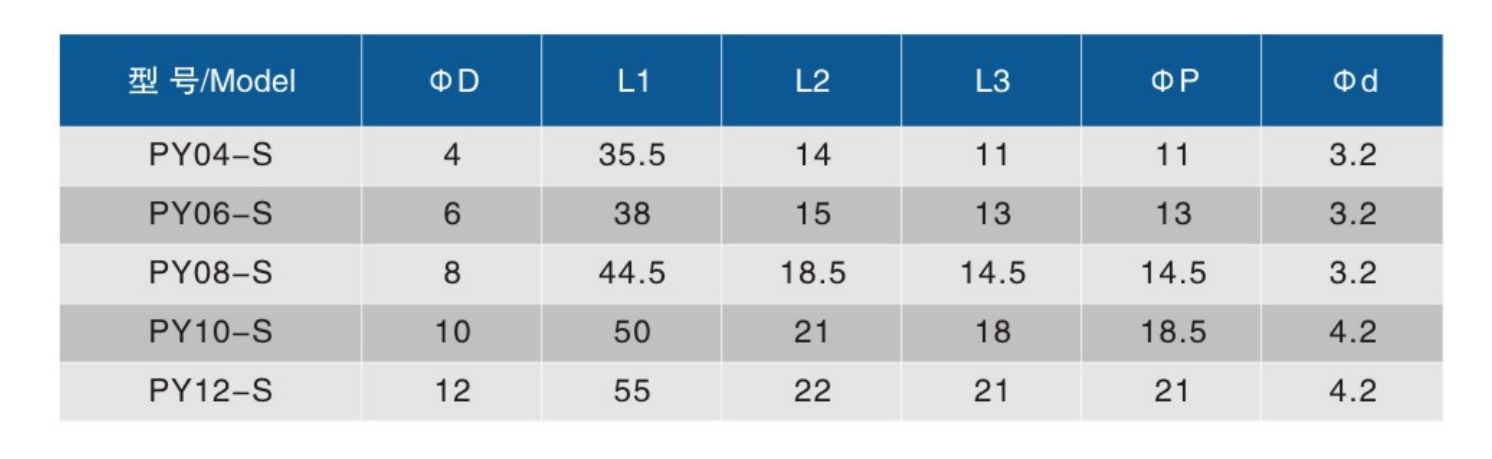

• Thread Specifications：04-S、06-S、08-S、10-S、12-S

• Button Sizes：4、6、8、10、12

* Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.*

• Working Pressure：0~1.0 MPa

• Operating Temperature：-10°C to +60°C

• Vacuum Pressure Rating： -100 Kpa (10 Torr)

• Fluid：Air、Water（Conditional）

• Application：Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.
