• Model：ZJ-NC

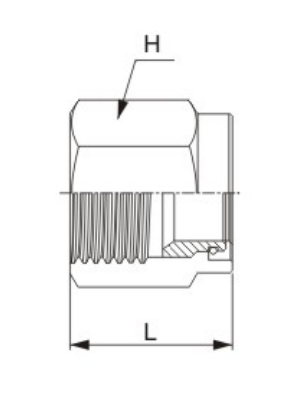

• Product Type & Structure：LockNut Tube Fittings

• Material：stainless steel

• Surface Treatment：Magnetic grinding

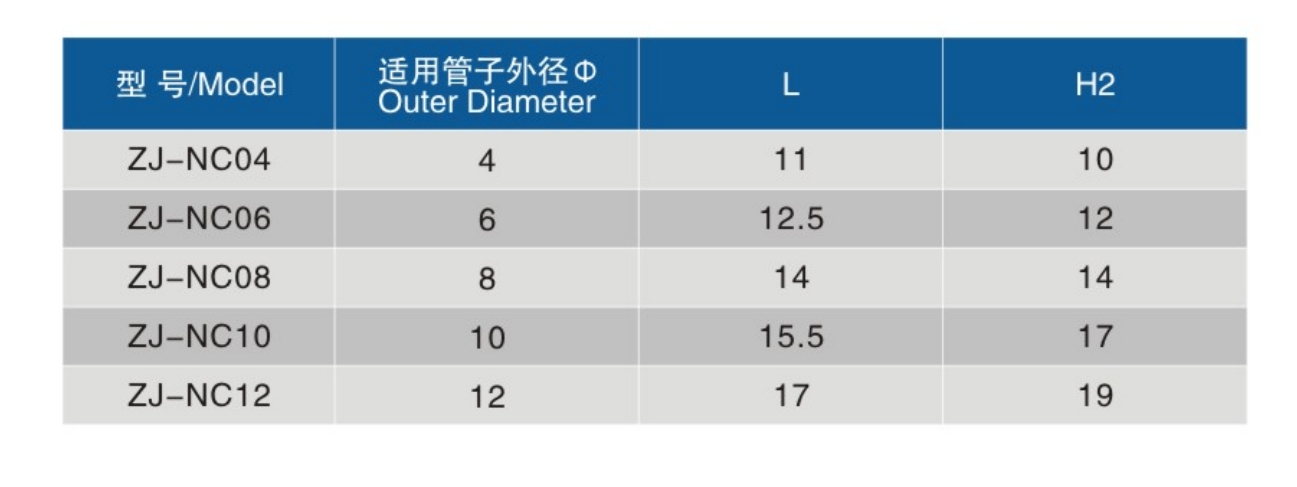

• Thread Specifications：4、6、8、10、12

• Outer Diameter：4、6、8、10、12

* Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.*

• Working Pressure：0~1.0 MPa

• Operating Temperature：-10°C to +60°C

• Vacuum Pressure Rating： -100 Kpa (10 Torr)

• Fluid：Air、Water（Conditional）

• Application：Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.
