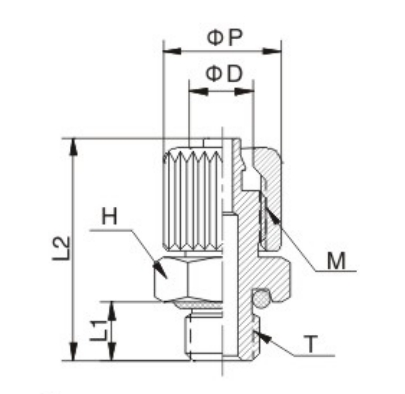

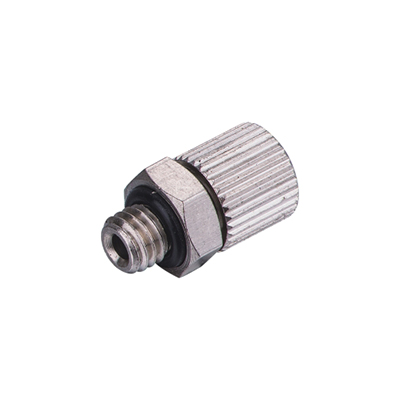

TC Mini Locknut Male Straight

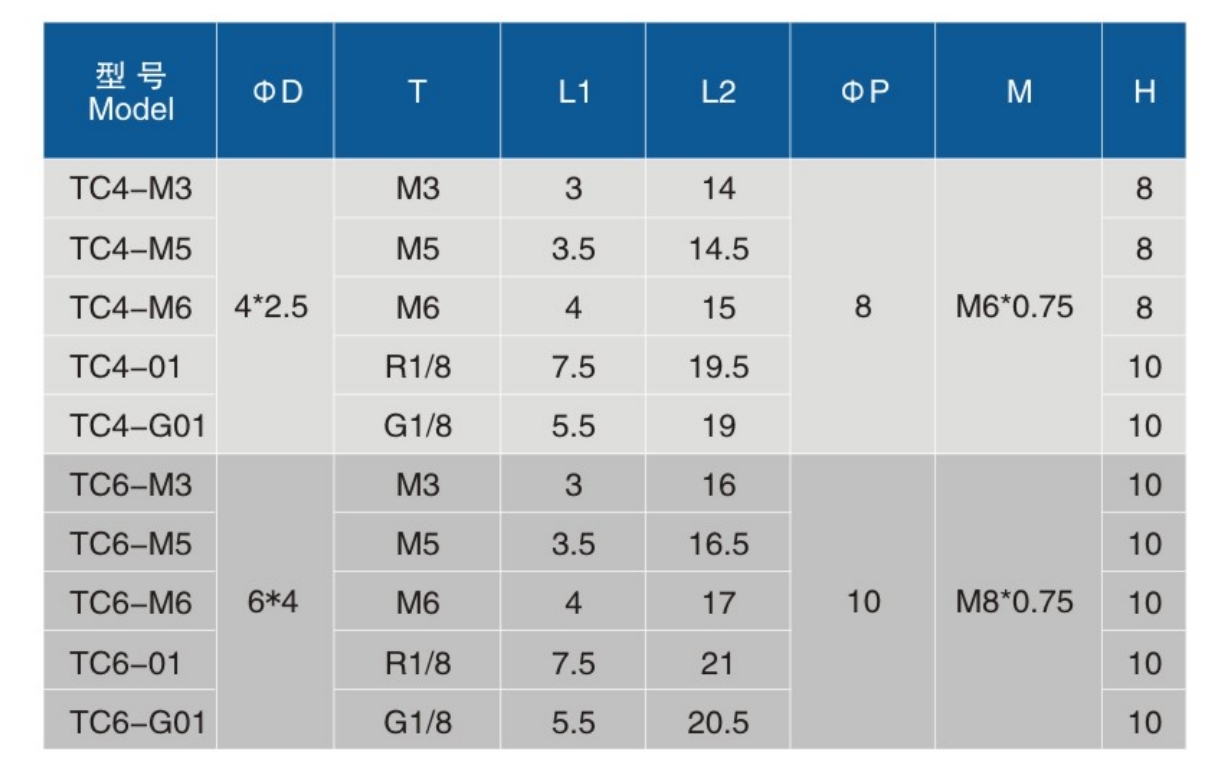

• Model：TC Mini Locknut Male Straight
• Product Type & Structure：Mini Quick Connecting Tube Fittings
• Material：Plastic、Brass、Nitrile rubber (NBR)
• Surface Treatment：Pickling、Electroplating
• Thread Specifications：M3、M5、M6、01、G01
• Button Sizes：4*2.5、6*4
* Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.*
• Working Pressure：0~1.0 MPa
• Operating Temperature：-10°C to +60°C
• Vacuum Pressure Rating： -100 Kpa (10 Torr)
• Fluid：Air、Water（Conditional）
• Application：Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.
• Phone/WhatsApp：+86 13777151201
• E-mail：ptce@ptce.net
The compact fittings are used to the pneumatic tube system.
The volume is 40% smaller than the standard pneumatic fittings.
The small and oval sleeve is easy to push in and pull out the tube.
Nickel-plated brass body is corrosion-proof and anti pollution.
