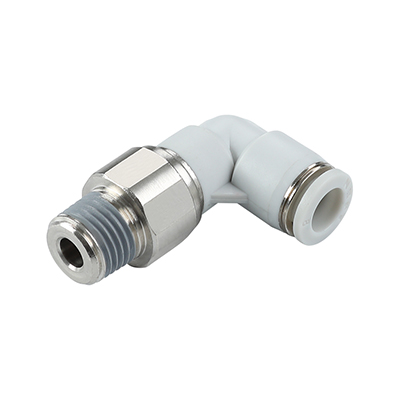

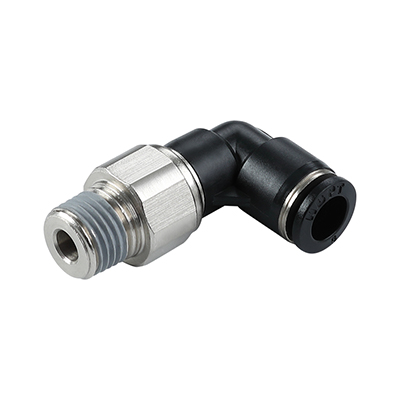

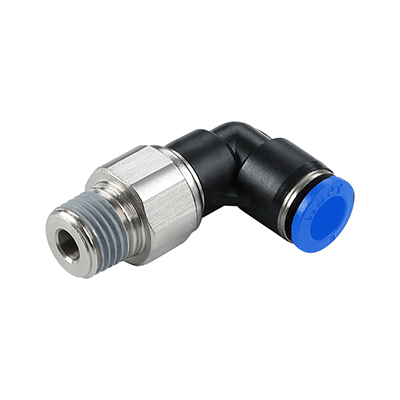

• Model：Rotary Elbow Male BSPT Thread(R Thread)

• Product Type & Structure：Rotary joint

• Material：stainless steel、Plastic、Brass、Nitrile rubber (NBR)

• Surface Treatment：Pickling、Electroplating

• Thread Specifications：M5、M6、01、02、03、04、1/4、5/16、3/8、1/2

• Button Sizes：4、6、8、10、12、16、1/4、5/16、3/8、1/2

* Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.*

• Working Pressure：0~1.0 MPa

• Operating Temperature：-10°C to +60°C

• Vacuum Pressure Rating： -100 Kpa (10 Torr)

• Fluid：Air、Water（Conditional）

• Application：Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.
