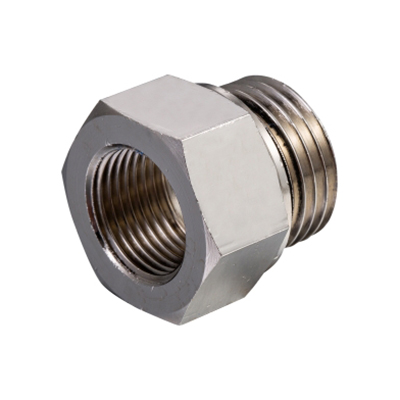

• Model：MaleFemale Adaptor

• Product Type & Structure：Combined Type Tube Fittings

• Material：Brass、Nitrile rubber (NBR)

• Surface Treatment：Pickling、Electroplating

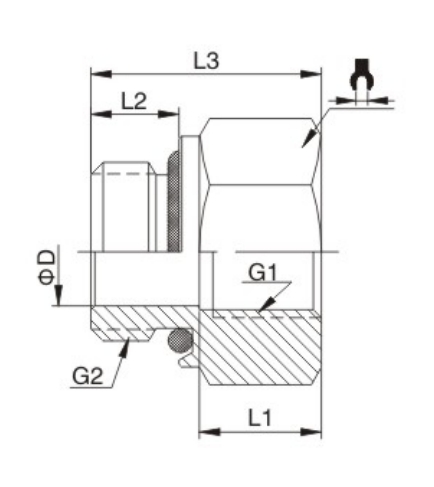

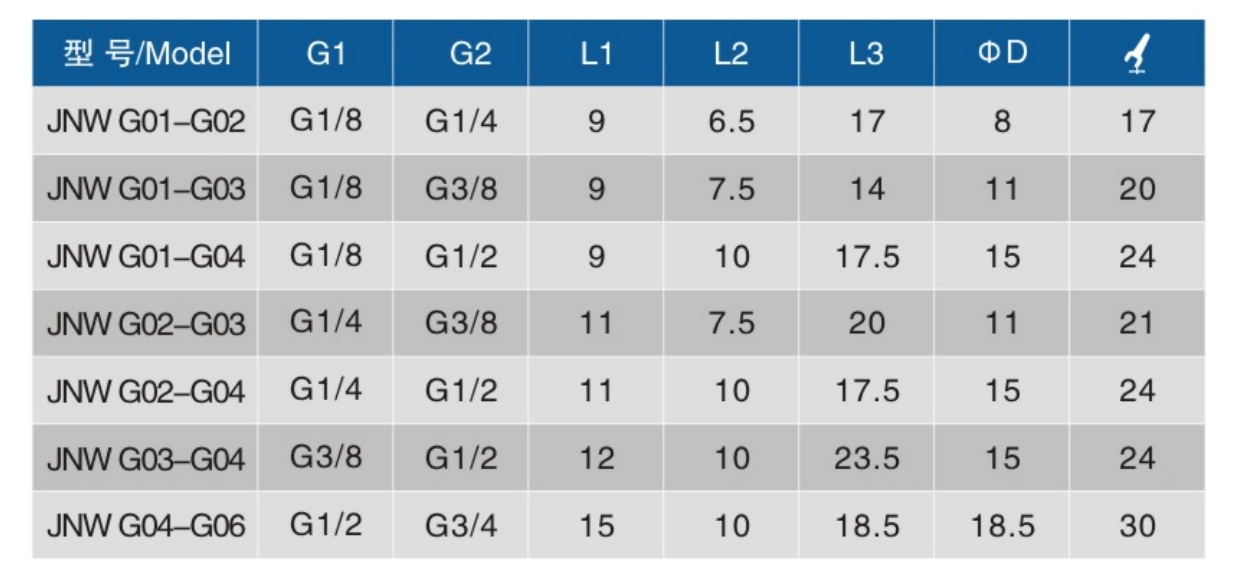

• Thread Specifications G1: G1/8、G1/4、G3/8、G1/2

• Thread Specifications G2: G1/4、G3/8、G1/2、G3/4

* Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.*

• Working Pressure：0~1.0 MPa

• Operating Temperature：-10°C to +60°C

• Vacuum Pressure Rating： -100 Kpa (10 Torr)

• Fluid：Air、Water（Conditional）

• Application：Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.
