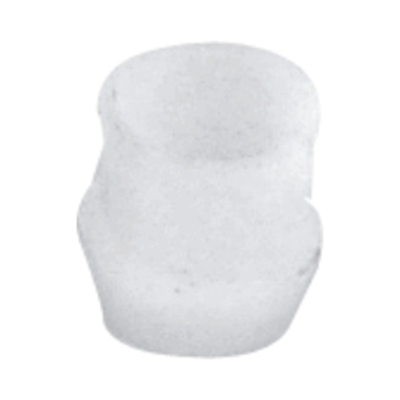

• Model：NK Type Ferrule

• Product Type & Structure：Nk Type Tube Fittings

• Material：nylon

• Surface Treatment：Pickling、Electroplating

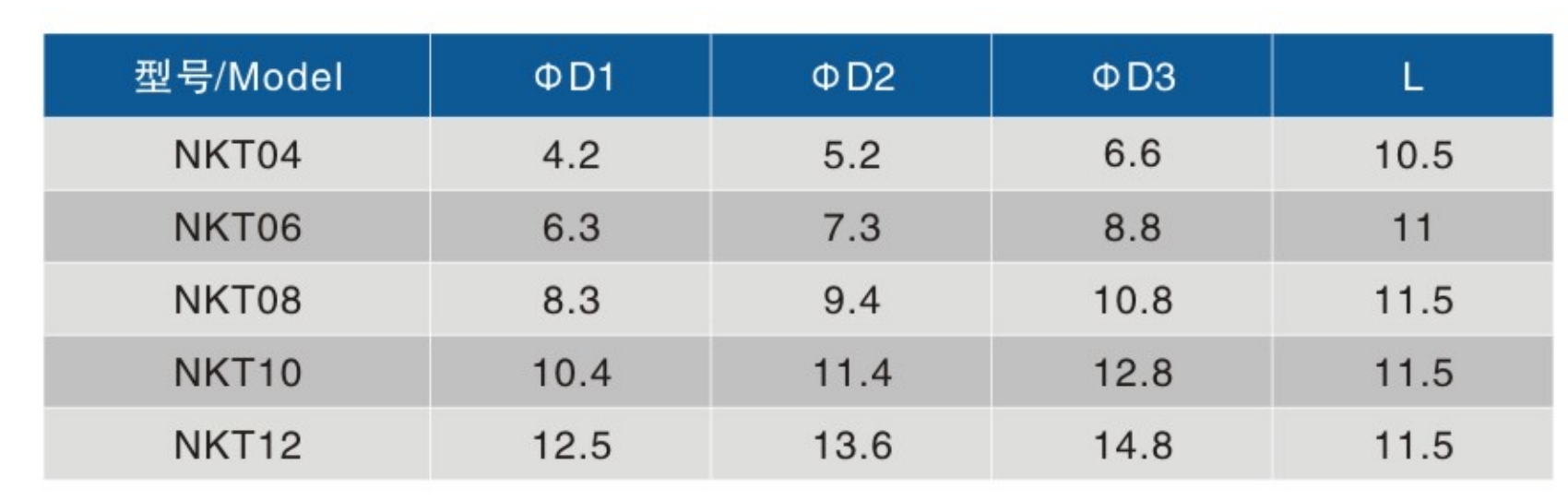

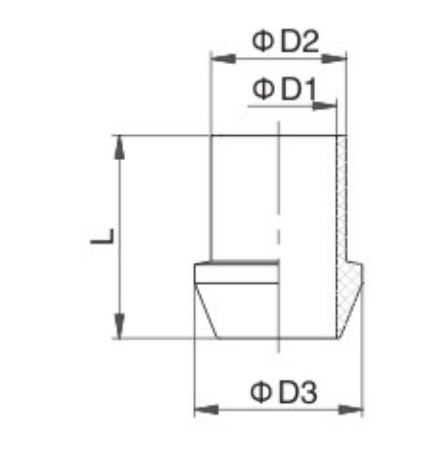

• pipe orifice1：4.2、6.3、8.3、10.4、12.5

• pipe orifice2：5.2、7.3、9.4、11.4、13.6

* Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.*

• Working Pressure：0~1.0 MPa

• Operating Temperature：-10°C to +60°C

• Vacuum Pressure Rating： -100 Kpa (10 Torr)

• Fluid：Air、Water（Conditional）

• Application：Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.
