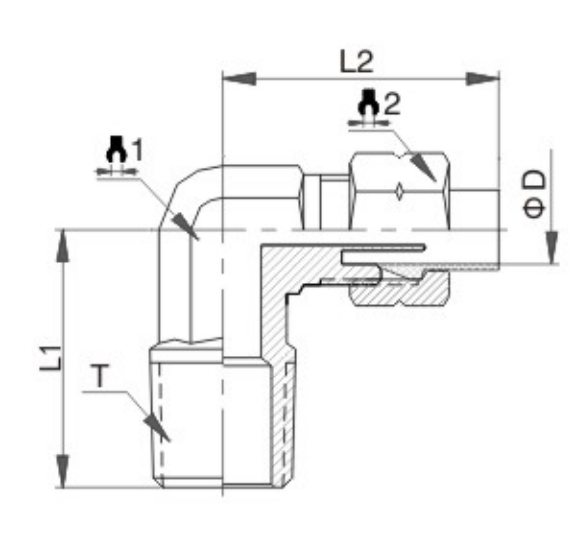

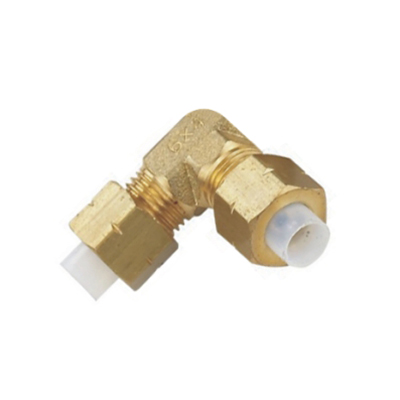

• Model：NK Type BSPT Thread(R Thread) LType 90° Elbow

• Product Type & Structure：Nk Type Tube Fittings

• Material：Brass、nylon

• Surface Treatment：Pickling、Electroplating

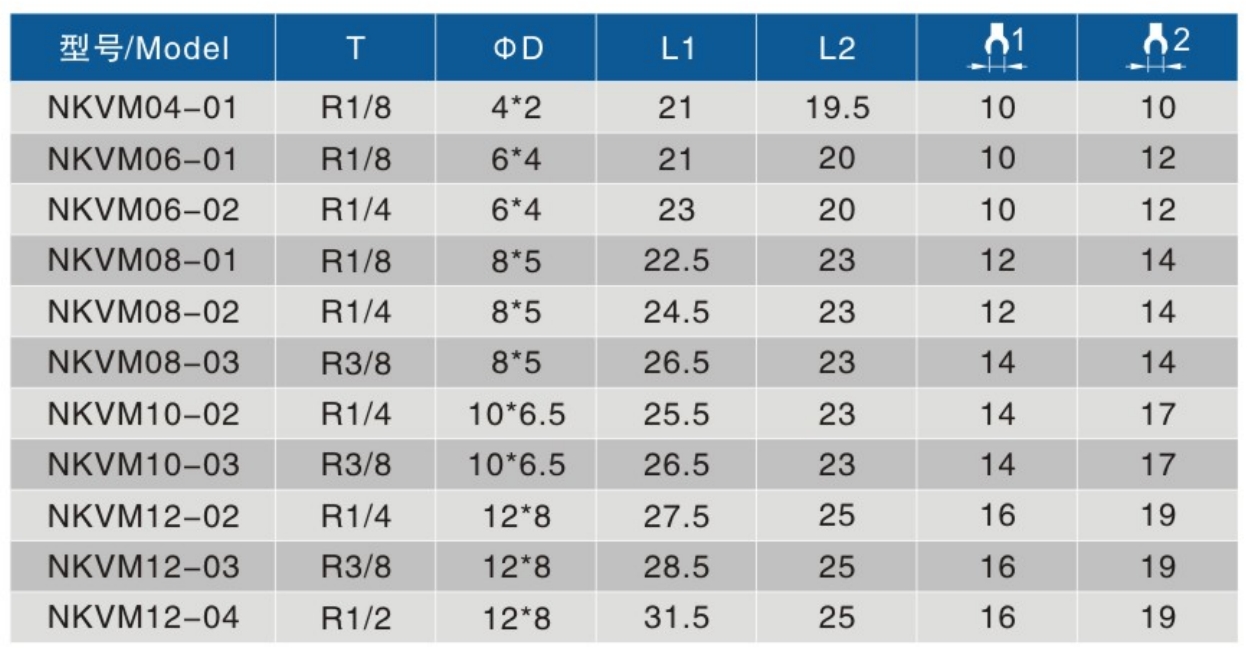

• pipe orifice：4*2、6*4、8*5、10*6.5、12*8

• Thread Specifications:R1/8、R1/4、R3/8、R1/2

* Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.*

• Working Pressure：0~1.0 MPa

• Operating Temperature：-10°C to +60°C

• Vacuum Pressure Rating： -100 Kpa (10 Torr)

• Fluid：Air、Water（Conditional）

• Application：Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.
