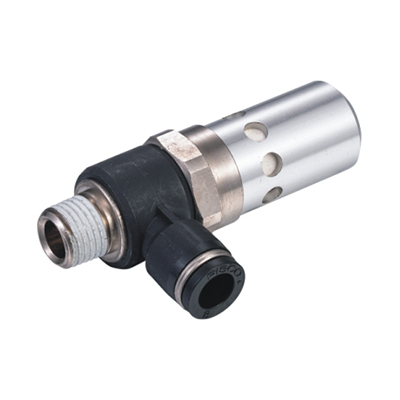

• Model：Ltype 90° Elbow Male BSPT Thread(R Thread)Vacuum Generator

• Product Type & Structure：Vacuum Generator

• Material：Brass、 plastics

• Surface Treatment：Pickling、Electroplating

• Thread specification：R1/8、R1/4

• pipe orifice:6、8

* Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.*

• Working Pressure：0~1.0 MPa

• Operating Temperature：-10°C to +60°C

• Vacuum Pressure Rating： -100 Kpa (10 Torr)

• Fluid：Air、Water（Conditional）

• Application：Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.
