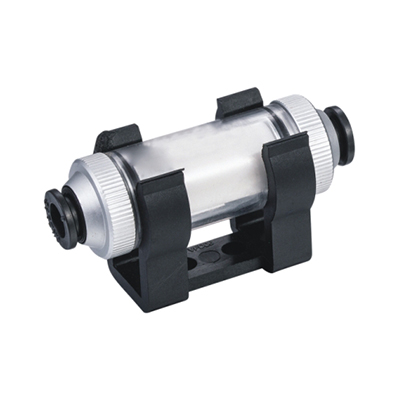

VFU1 Standard Vacuum Filter
• Model：Standard Vacuum Filter
• Product Type & Structure：Vacuum Filter
• Material：Brass、 plastics
• Surface Treatment：Pickling、Electroplating
• pipe orifice：6、8、R1/8、R1/4
* Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.*
• Working Pressure：0~1.0 MPa
• Operating Temperature：-10°C to +60°C
• Vacuum Pressure Rating： -100 Kpa (10 Torr)
• Fluid：Air、Water（Conditional）
• Application：Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.
• Phone/WhatsApp：+86 13777151201
• E-mail：ptce@ptce.net
Using the filter element and cyclone separation effect, the vacuum filter removes impurities such as dust and watergenerated by the vacuum generator.
The filter ash storage box is large,which can reduce the maintenance frequency.
The filter ash storage box can be quickly disassembled as a whole, and the dust will not disperse
